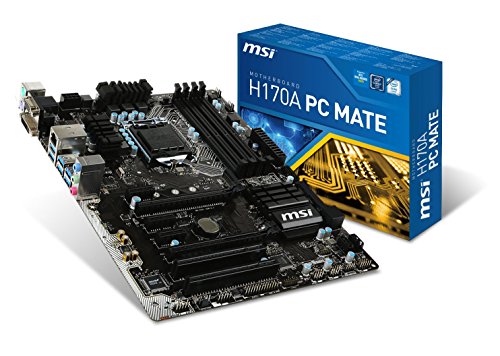

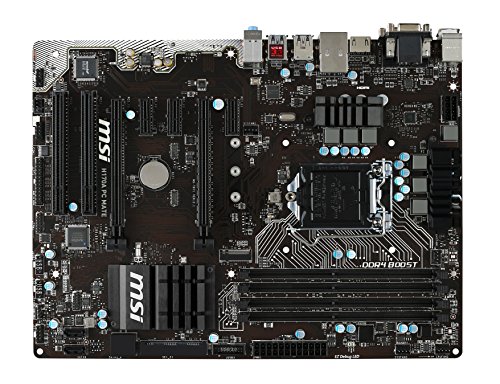

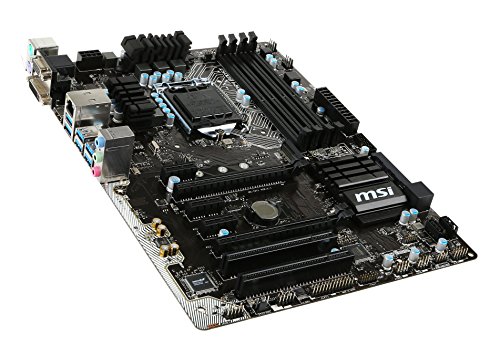

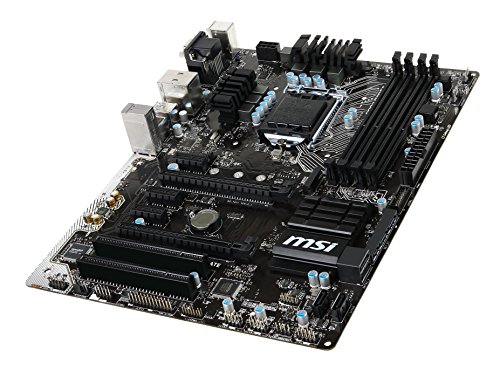

MSI H170A PC Mate, H170A_PC_MATE

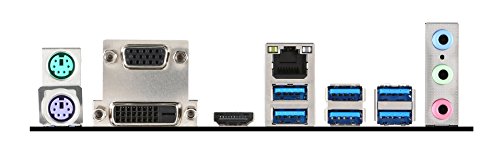

Brand MSI, Model H170A PC Mate CPU Socket Type LGA 1151, CPU Type Core i7 / i5 / i3 / Pentium / Celeron (LGA1151), Chipset Intel H170, Onboard Video Chipset Intel HD 5000/4000 Series, Number of Memory Slots 4×288pin, Memory Standard DDR4 2133/ 2400/ 2666/ 2800/ 3000 (2133+(OC, Maximum Memory Supported 64GB, Channel Supported Dual Channel, PCI Express 3.0 x16 2 (2 PCI-E 3.0; 16x+4x), PCI Express x1 3 x PCI Express x1, PCI Slots 2 x PCI Slots, SATA 6Gb/s 6 x SATA 6Gb/s, SATA Express 1, Audio Chipset Realtek ALC887, Audio Channels 8 Channels, LAN Chipset Realtek 8111H, Max LAN Speed 10/100/1000Mbps, Video Ports 1 x D-Sub, 1 x DVI , HDMI 1 x HDMI, USB 3.1 Type A (2 on Rear I/O), USB 3.0 4 x USB 3.0, USB 1.1/2.0 2 x USB 2.0, Onboard USB 4 x USB 3.0 + 2 x USB 2.0, Form Factor ATX,

H170A_PC_MATE
