AV Access HDMI Extender Powered Balun POE, Uncompressed 1080P 60Hz over Single Cat5e/6a/7 Converter 164ft(50M), IR Control, Just 1 power adapter required, EQ 30M/50M Ethernet cables, ESD Protection

AV Access HDMI Extender Powered Balun POE, Uncompressed 1080P 60Hz over Single Cat5e/6a/7 Converter 164ft(50M), IR Control, Just 1 power adapter required, EQ 30M/50M Ethernet cables, ESD Protection

by AV Access
Availability: Usually ships in 24 hours
Price: $35.99 $69.99
You save: $34.00 (49%)
Select Variant:
4K HDMI Extender Over Single cat5e/6/UTP, 4Kx2K -131ft(40M), 1080P-197ft(60M), HDMI1.4, HDCP1.4, Bi-Directional IR, Dolby True HD/DTS HD Master/PCM7.1, Auto Equalization for Video and Audio. AV Access HDMI Extender Powered Balun POE, Uncompressed 1080P 60Hz over Single Cat5e/6a/7 Converter 164ft(50M), IR Control, Just 1 power adapter required, EQ 30M/50M Ethernet cables, ESD Protection
* Price as of 2019-07-18 20:26 CET - Details
BrandAV Access
SKUB07H58829J
MPNHDEX40-L
Share This Page

Product Description

Overview

HDEX40-L is a 50m 1080P cost-effective HDMI extender, and offers the extension of full HD video,
2CH audio and IR pass through up to 50m/164ft along a single Cat X cable. With a feature set
including transmission of uncompressed 1080p HD video@60Hz, stereo audio, one-way IR pass
through and PoC (Power over Cat X cable).

With the PoC inside, the receiver can be powered by transmitter without additional power adaptor.
It offers the added benefit of an incredibly low-profile for a greatly reduced form factor behind the
screen for even more convenience and ease of installation at the display zone.

The Receiver offers manual EQ DIP settings to adjust transmissions by distance for optimal signal delivery to the display.

General Information
【HDCP Format】:HDCP1.4
【HDMI Format】:HDMI1.3b
【Power Supply】: POC/POE. Only 1 power supply connected to transmitter is enough.
【Resolution Supported】: 480i/480p/720p/1080i/1080p 60Hz
【Built-in ESD】: ±8kV (air-gap discharge) & ±4kV (contact discharge). Preventing Strikes.
【Built-in Surge Protection】: Voltage ± 1kV
【Control Method】: Infrared
【Mounting】Mounting Brackets (with Screws) x 4

Features
Uncompressed 1080P/60Hz up to 50M over Cat 6/6a cable, 40M over Cat 5e cable
Independent HDMI equalization adjustment button on receiver

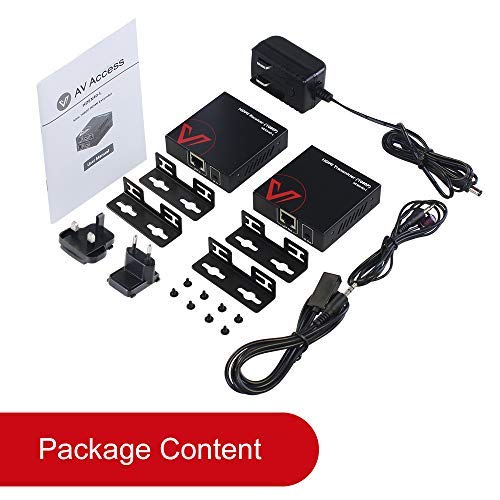

Package Contents
Transmitter x 1
Receiver x1
Power Adapter (DC 5V 1A) x1
IR Emitter x1
IR Receiver (30 KHz ~ 50 KHz) x1
Mounting Brackets (with Screws) x 4
User Manual x 1

Product Features

  • 【FullHD 1080p60Hz】This HDMI extender supports uncompressed signal up to 50meters Using Cat5e/Cat6/Cat7/RJ45 Cable with a Lossless Transmission. EQ switch allows You to adjust Picture's quality to Match Cat Cable Length, No Driver Needed, Plug and Play.
  • 【IR Function Supported】With built-in Wideband IR Control, Easy Control a DVD player or other HDMI Video Sources from the display. Compared with hdmi extender over IP, we're no delay in signal transmission.
  • 【Especially With PoC Just 1 Power Adapter Required】Allow you to power both units by supplying power to just transmitter's side (it sends power to the other side over the Ethernet wire). Receiver can be powered by transmitter without an additional power adaptor. Installation is a breeze.
  • 【High Compatibility】This HDMI extender Can Do a Really Good Job with your PC, Game consoles, DVD Player, Satellite Box, Cable Box, Android Box etc; Ideal for Digital Signage,HomeTheater,Boardrooms,Workshop,Seminar,Classrooms,Conference,Gaming,Video Production etc.
  • 【High Reliability】Certificated by FCC, CE. Built-in Surge and ESD (Electro-Static Discharge) protection, preventing thunder strikes. 1-Year Warranty, and easy-to-reach friendly customer service (AV Access) .
