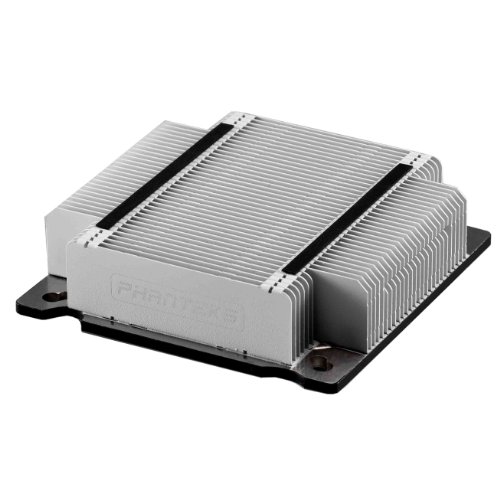

Phanteks Ultra Low Profile CPU Cooler with 3x6 mm Embedded Copper Heat-Pipes and PH-F90PWM Premium Fan PH-TC90LS

by Phanteks

Availability: Currently Unavailable

Share This Page

Product Features

Phanteks patented P.A.T.S (Physical Antioxidant Thermal Shield) technology dramatically increases the cooling performance and reliability of PH-TC90LS by deflecting thermal radiation from other heat sources, like GPU, South Bridge, North Bridge, and etc.
Phanteks patented C.P.S.C Technology is a new innovative forming deposit tht transfers heat onto corresponding metals at a more rapidly rate. PH-TC90LS enhances thermal conductivity on the soldered surfaces of the heat-pipes thru the copper deposits.
The PH-TC90LS is made to ensure it has the least amount of air and thermal resistance. To prevent mechanical conflicts with other components, PH-TC90LS follow Intel's Keep-Out-Zone (95x95mm) requirements.
Phanteks PH-F90 PWM Premium fans uses UFB (Updraft Floating Balance) bearing, Nine blades and MAFO (Maelstrom Air-Fort Optimization) drive system to achieve massive airflow and perfect dynamic balance.
PH-TC90LS takes less than 1 minute to install. It requires 4 screws and the rotational back plate for the Intel LGA 2011/1155/1156 to tightly secure it to MB.

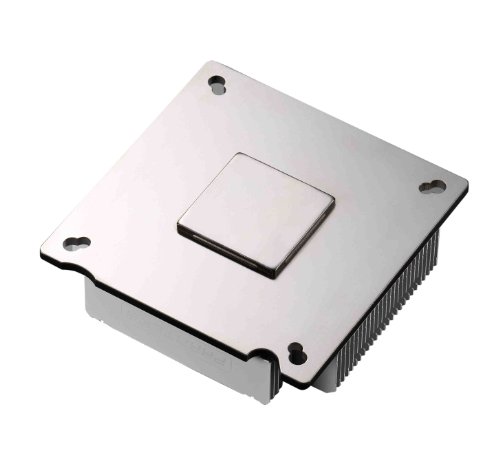

Compatibility: Intel Socket 2011/1155/1156. Color: White. Materials: Copper (Base and Heat-pipes), Nickel Plated Aluminum Cooling Fins with patented P.A.T.S. and C.P.S.C technology. Fan Model: PH-F90 PWM Premium Fan. Fan Size: 92x92x15mm
Bearing Type: UFB (Updraft Floating Balance) Bearing. Blade Geometry: White Colored Nine Blades Design. PH-F90 PWM RPM: 1000 - 2500 ± 300 RPM. Max Air Flow: 11.53 - 28.67 CFM. Max Air Pressure: 0.21 - 1.34mm H2O. Acoustical Noise: 19 - 26 dB(A)
Input Power: 3W. Current (Ampere): 0.25A. Rate Voltage :12V. MTBF: >150.000 hr. Heatsink Dimensions (LxWxH) without Fan: 95x95x27mm. Heatsink Dimensions (LxWxH) with Fan: 95x95x43mm. Heatsink Weight without Fan: 235g. Heatsink Weight with Fan: 273g
