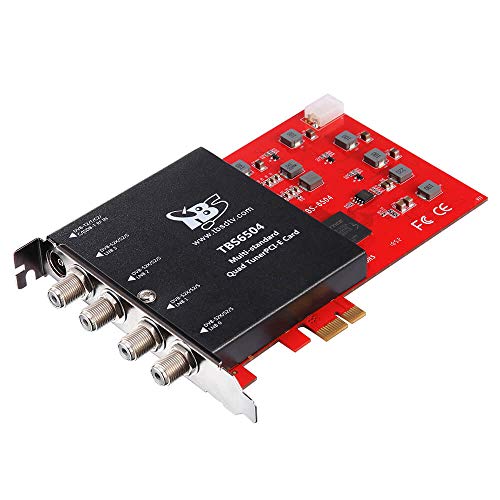

TBS6504 DVB-S2X S2 S T2 T C2 C Digital TV Quad Tuner Card for Live TV

TBS6504 DVB-S2X S2 S T2 T C2 C Digital TV Quad Tuner Card for Live TV

by TBS
BrandTBS
SKUB07RB14BYS
MPNTBS6504
GTIN6947229065042
Share This Page

Product Description

Main Features:
Support DVB-S/S2/S2X , DVB-T2/T, DVB-C2/C (ITU-T J.83 Annex A/B/C), ISDB-T
Fast scanning functionality for all media
Support VCM, CCM, QPSK, 8PSK, 16APSK, 32APSK;
Up to 173M/bps(TS Data Rate)
Quad flexible TS interfaces

ISDB-T
COFDM demodulator and FEC decoding
Support 3 layers decoding
TMCC decoding
Support differential demodulation
AC1 and AC2 decoding

DVB-T2 and T2-Lite
Receiving channel: VHF band, UHF band
Bandwidth: 1.7, 5, 6, 7, 8MHz
FEC: QPSK, 16QAM, 64QAM,256QAM
FEC: QPSK, 16QAM, 64QAM,256QAM
FFT mode: 1K, 2K, 4K, 8K, 16K, 32K
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8

DVB-C2
COFDM demodulator(16_QAM to 4096_QAM)
FEC(LDPC/BCH) decoder
Bandwidth: 6MHz, 7MHz, 8MHz

DVB-C and ITU-T J.83 Annex B
QAM demodulator
FEC decoder
1 to 7.2MSymbol/s

DVB-S/S2/S2X
symbol rates: 1-45Msps
FEC:
DVB-S/S2
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2X
QPSK: 13/45, 9/20, 11/20
2_4_2_APSK: 100/180, 104/180
8PSK: 23/36, 25/36, 13/188_8_APSK: 90/180, 96/180, 100/180, 18/30, 20/30
16APSK: 26/45, 3/5, 28/45, 23/36, 25/36, 13/18, 140/180, 154/180
4_12_16rb_APSK: 2/3
4_8_4_16_APSK: 128/180, 132/180, 140/180

Power consumption
Input/ Power: 12V/6~18W
Temperature: 0°~ 60°

System Requirements:
Windows XP / Vista/ 7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot
Digital TV signal (ISDB-T/DVB-T2/C2/S2X/S2/T/C/S)

Package Contents :
1 x TBS6504
1 x DC line
2 x F-IEC adapter

Product Features

  • MULTIPLE DIGITAL TV STANDARD: Supports DVB-S2X/S2/S/T2/T/C2/C/ISDB-T, four RF IN is independent with each other, with this multi-standard TV tuner card, a switchover between different digital TV signals is much easier
  • QUAD TUNER: With four tuners it enable to watch TV channel from one transponder/satellite while recording another channel from another transponder/ satellite at the same time.
  • PROFESSIONAL TUNER: Support VCM, CCM, QPSK, 8PSK, 16APSK, 32APSK
  • WIDELY Applications: Data receiving, Media monitoring, Digital content distribution
