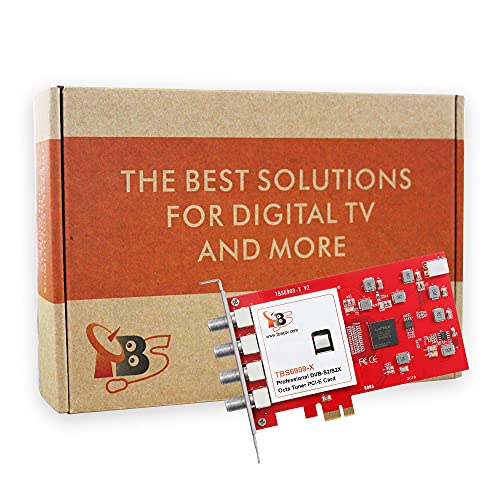

TBS6909X DVB-S/ S2/ S2X 8 Tuner PCI Express Digital Satellite TV Card for Live TV

TBS6909X DVB-S/ S2/ S2X 8 Tuner PCI Express Digital Satellite TV Card for Live TV

by TBS
Availability: Usually ships in 1-2 business days
Price: $329.99 $399.99
You save: $70.00 (18%)
* Price as of 20:25 CET - Details
BrandTBS
SKUB07H7GPP7D
ModelTBS5520SE
MPNTBS6909X
GTIN0688209394344
UPC688209394344
Share This Page

Product Description

Specification:
Model: TBS6909-X
Connection: PCI-express; 4x RF in
DVB-S/S2/S2X
DVB-S/S2
 &nbspQPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
 &nbsp8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
 &nbsp16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
 &nbsp32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2X
QPSK:
    1/4,1/3, 2/5 (S2-MODCODs)
    1/2, 3/5, 2/3, 3/4, 4/5, 5/6
     8/9, 9/10 (S2-MODCODs)
    11/45, 4/15, 14/45, 7/15 8/15, 32/45
8PSK:
    3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs)
    7/15, 8/15, 26/45, 32/45
16APSK:
    2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs)
    7/15, 8/15, 26/45, 3/5, 32/45
32APSK:     2/3, 32/45
VCM: Yes
ACM: Yes

Power consumption:
Input/ Power: 12V/7~15W
Temperature: 0°~ 60°

Other information:
System Requirements: Windows XP / Vista/ 7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot

Package Contents:
1* TBS6909-X
1* Power cable

Product Features

  • DVB-S/S2/S2X: Support DVB-S, DVB-S2 and DVB-S2X standard
  • WATCH SATELLITE TV PROGRAMES: A powerful DVB-S2 octa tuner card with PCI Express interface, it is capable of receiving SD/HD digital TV channels from 8 different transponders simultaneously, which is considered as a professional TV tuner for industrial-level users
  • 8 TUNER WITH 4 INPUTS: When you have limited PCIe slots in your server, this tuner card enables you to receive more channels than the usual dual or quad TV tuner, thus it is highly recommended for IPTV streaming and broadcasting system
  • SUPPORT: Fast scanning functionality; VCM, ACM, CCM, QPSK, 8PSK, 16APSK, 32APSK; wide band
  • WIDLY APPLICATION: Data receiving, Media monitoring, Digital content distribution
